ns3::Ipv6ExtensionHeader Class Reference

Header for IPv6 Extension. More...

#include <introspected-doxygen.h>

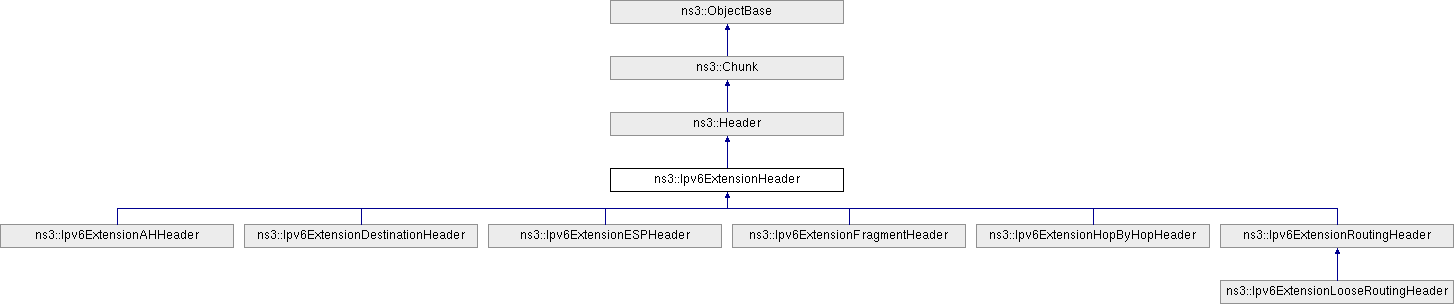

Inheritance diagram for ns3::Ipv6ExtensionHeader:

Public Member Functions
	Ipv6ExtensionHeader ()
	Constructor.
virtual	~Ipv6ExtensionHeader ()
	Destructor.
virtual uint32_t	Deserialize (Buffer::Iterator start)
	Deserialize the packet. More...
virtual TypeId	GetInstanceTypeId () const
	Get the instance type ID. More...
uint16_t	GetLength () const
	Get the length of the extension. More...
uint8_t	GetNextHeader () const
	Get the next header. More...
virtual uint32_t	GetSerializedSize () const
	Get the serialized size of the packet. More...
virtual void	Print (std::ostream &os) const
	Print some informations about the packet. More...
virtual void	Serialize (Buffer::Iterator start) const
	Serialize the packet. More...
void	SetLength (uint16_t length)
void	SetNextHeader (uint8_t nextHeader)
	Set the "Next header" field. More...
Public Member Functions inherited from ns3::ObjectBase
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the type identificator. More...
Static Public Member Functions inherited from ns3::Header
static TypeId	GetTypeId (void)
Static Public Member Functions inherited from ns3::Chunk
static TypeId	GetTypeId (void)
Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)

Private Attributes
Buffer	m_data
	The data of the extension.
uint8_t	m_length
	The "length" field.
uint8_t	m_nextHeader
	The "next header" field.

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
virtual void	NotifyConstructionCompleted (void)

Detailed Description

Header for IPv6 Extension.

Doxygen introspection did not find any typical Config paths.
No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 39 of file ipv6-extension-header.h.

Member Function Documentation

uint32_t ns3::Ipv6ExtensionHeader::Deserialize ( Buffer::Iterator  start )

virtual

Deserialize the packet.

Parameters

start

Buffer iterator

Returns

size of the packet

Implements ns3::Header.

Reimplemented in ns3::Ipv6ExtensionAHHeader, ns3::Ipv6ExtensionESPHeader, ns3::Ipv6ExtensionLooseRoutingHeader, ns3::Ipv6ExtensionRoutingHeader, ns3::Ipv6ExtensionFragmentHeader, ns3::Ipv6ExtensionDestinationHeader, and ns3::Ipv6ExtensionHopByHopHeader.

Definition at line 97 of file ipv6-extension-header.cc.

References ns3::Buffer::AddAtEnd(), ns3::Buffer::Begin(), GetLength(), GetSerializedSize(), ns3::Buffer::GetSize(), m_data, m_length, m_nextHeader, ns3::Buffer::Iterator::Read(), ns3::Buffer::Iterator::ReadU8(), ns3::Buffer::RemoveAtEnd(), and ns3::Buffer::Iterator::Write().

TypeId ns3::Ipv6ExtensionHeader::GetInstanceTypeId ( void  ) const

virtual

Get the instance type ID.

Returns

instance type ID

Implements ns3::ObjectBase.

Reimplemented in ns3::Ipv6ExtensionAHHeader, ns3::Ipv6ExtensionESPHeader, ns3::Ipv6ExtensionLooseRoutingHeader, ns3::Ipv6ExtensionRoutingHeader, ns3::Ipv6ExtensionFragmentHeader, ns3::Ipv6ExtensionDestinationHeader, and ns3::Ipv6ExtensionHopByHopHeader.

Definition at line 42 of file ipv6-extension-header.cc.

References GetTypeId().

uint16_t ns3::Ipv6ExtensionHeader::GetLength

(

)

const

Get the length of the extension.

Returns

the length of the extension

Definition at line 73 of file ipv6-extension-header.cc.

References m_length.

Referenced by Deserialize(), ns3::Ipv6ExtensionHopByHopHeader::Deserialize(), ns3::Ipv6ExtensionDestinationHeader::Deserialize(), ns3::Ipv6ExtensionFragment::GetFragments(), Print(), ns3::Ipv6ExtensionHopByHopHeader::Print(), ns3::Ipv6ExtensionDestinationHeader::Print(), ns3::Ipv6ExtensionFragmentHeader::Print(), ns3::Ipv6ExtensionRoutingHeader::Print(), ns3::Ipv6ExtensionLooseRoutingHeader::Print(), ns3::Ipv6ExtensionHopByHop::Process(), ns3::Ipv6ExtensionDestination::Process(), ns3::Ipv6ExtensionLooseRouting::Process(), ns3::Ipv6ExtensionHopByHopHeader::Serialize(), ns3::Ipv6ExtensionDestinationHeader::Serialize(), ns3::Ipv6ExtensionFragmentHeader::Serialize(), ns3::Ipv6ExtensionRoutingHeader::Serialize(), and ns3::Ipv6ExtensionLooseRoutingHeader::Serialize().

uint8_t ns3::Ipv6ExtensionHeader::GetNextHeader

(

)

const

Get the next header.

Returns

the next header number

Definition at line 63 of file ipv6-extension-header.cc.

References m_nextHeader.

Referenced by ns3::Ipv6ExtensionFragment::GetFragments(), Print(), ns3::Ipv6ExtensionHopByHopHeader::Print(), ns3::Ipv6ExtensionDestinationHeader::Print(), ns3::Ipv6ExtensionFragmentHeader::Print(), ns3::Ipv6ExtensionRoutingHeader::Print(), ns3::Ipv6ExtensionLooseRoutingHeader::Print(), ns3::Ipv6ExtensionHopByHop::Process(), ns3::Ipv6ExtensionDestination::Process(), ns3::Ipv6ExtensionFragment::Process(), ns3::Ipv6ExtensionLooseRouting::Process(), ns3::Ipv6ExtensionHopByHopHeader::Serialize(), ns3::Ipv6ExtensionDestinationHeader::Serialize(), ns3::Ipv6ExtensionFragmentHeader::Serialize(), ns3::Ipv6ExtensionRoutingHeader::Serialize(), and ns3::Ipv6ExtensionLooseRoutingHeader::Serialize().

uint32_t ns3::Ipv6ExtensionHeader::GetSerializedSize ( void  ) const

virtual

Get the serialized size of the packet.

Returns

size

Implements ns3::Header.

Reimplemented in ns3::Ipv6ExtensionAHHeader, ns3::Ipv6ExtensionESPHeader, ns3::Ipv6ExtensionLooseRoutingHeader, ns3::Ipv6ExtensionRoutingHeader, ns3::Ipv6ExtensionFragmentHeader, ns3::Ipv6ExtensionDestinationHeader, and ns3::Ipv6ExtensionHopByHopHeader.

Definition at line 83 of file ipv6-extension-header.cc.

Referenced by Deserialize().

TypeId ns3::Ipv6ExtensionHeader::GetTypeId ( void  )

static

Get the type identificator.

Returns

type identificator

Definition at line 33 of file ipv6-extension-header.cc.

References ns3::TypeId::AddConstructor().

Referenced by GetInstanceTypeId().

void ns3::Ipv6ExtensionHeader::Print ( std::ostream &  os ) const

virtual

Print some informations about the packet.

Parameters

os	output stream

Returns

info about this packet

Implements ns3::Header.

Reimplemented in ns3::Ipv6ExtensionAHHeader, ns3::Ipv6ExtensionESPHeader, ns3::Ipv6ExtensionLooseRoutingHeader, ns3::Ipv6ExtensionRoutingHeader, ns3::Ipv6ExtensionFragmentHeader, ns3::Ipv6ExtensionDestinationHeader, and ns3::Ipv6ExtensionHopByHopHeader.

Definition at line 78 of file ipv6-extension-header.cc.

References GetLength(), and GetNextHeader().

void ns3::Ipv6ExtensionHeader::Serialize ( Buffer::Iterator  start ) const

virtual

Serialize the packet.

Parameters

start

Buffer iterator

Implements ns3::Header.

Reimplemented in ns3::Ipv6ExtensionAHHeader, ns3::Ipv6ExtensionESPHeader, ns3::Ipv6ExtensionLooseRoutingHeader, ns3::Ipv6ExtensionRoutingHeader, ns3::Ipv6ExtensionFragmentHeader, ns3::Ipv6ExtensionDestinationHeader, and ns3::Ipv6ExtensionHopByHopHeader.

Definition at line 88 of file ipv6-extension-header.cc.

References ns3::Buffer::GetSize(), m_data, m_length, m_nextHeader, ns3::Buffer::PeekData(), ns3::Buffer::Iterator::Write(), and ns3::Buffer::Iterator::WriteU8().

void ns3::Ipv6ExtensionHeader::SetLength

(

uint16_t

length

)

brief Set the length of the extension.

Parameters

length

the length of the extension in bytes

Definition at line 68 of file ipv6-extension-header.cc.

References m_length.

Referenced by ns3::Ipv6ExtensionHopByHopHeader::Deserialize(), ns3::Ipv6ExtensionDestinationHeader::Deserialize(), ns3::Ipv6ExtensionFragmentHeader::Deserialize(), ns3::Ipv6ExtensionRoutingHeader::Deserialize(), ns3::Ipv6ExtensionLooseRoutingHeader::Deserialize(), ns3::Ipv6ExtensionFragment::GetFragments(), ns3::Ipv6ExtensionLooseRouting::Process(), and ns3::Ping6::Send().

void ns3::Ipv6ExtensionHeader::SetNextHeader

(

uint8_t

nextHeader

)

Set the "Next header" field.

Parameters

nextHeader

the next header number

Definition at line 58 of file ipv6-extension-header.cc.

References m_nextHeader.

Referenced by ns3::Ipv6ExtensionHopByHopHeader::Deserialize(), ns3::Ipv6ExtensionDestinationHeader::Deserialize(), ns3::Ipv6ExtensionFragmentHeader::Deserialize(), ns3::Ipv6ExtensionRoutingHeader::Deserialize(), ns3::Ipv6ExtensionLooseRoutingHeader::Deserialize(), ns3::Ipv6ExtensionFragment::GetFragments(), and ns3::Ping6::Send().

---

The documentation for this class was generated from the following files:

• src/internet/model/ipv6-extension-header.h
• src/internet/model/ipv6-extension-header.cc
